Details
| Category | LED | |
| Page | H8 | |
| Description: | ||
| The LLHB2-FL is a simple, light weight LED Linear High Bay Light Fixture ideal for commercial areas such as warehouse, exhibition hall, gymnasiums, or super market. Its aluminum alloy housing make the LLHB2 easy to handle and install. Motion Sensor and Emergency Backup Kit Optional. UL listed for damp location. | ||
| Specifications: |
|
|
| Voltage: | 120~277V | |
| Power Factor: | > 0.9 | |
| Distribution Type: | TYPE VS Distribution | |
| Housing: | Aluminum Alloy | |
| Finish: | UV Resistant White Powder Coat Finish | |
| Lens Material: | Frosted PC Cover | |
| Ambient Operating Temp: | -40°C / -40°F to 55°C / 131°F | |
| Mount: (Included) | 5.3ft Adjustable Suspension Kit | |
| UL listed for damp location: | E335594 | |
| Life Hours: | 50,000 | |
| Warranty: | 5 Year Limited Warranty | |
| Beam Angle: | 110° | |
| Motion Sensor: | LLHB2-M (Order Separately) | |
| Remote Control: | LLHB2-RC (Order Separately) | |
| Emergency Backup Kit: | LLHB2-EM (Order Separately) | |
| Dimmable to 10% | ||

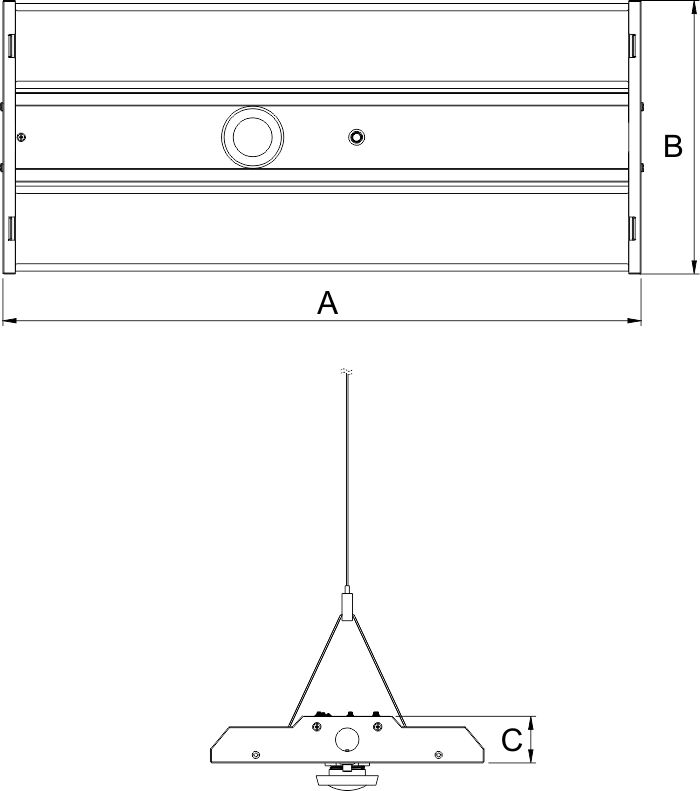

| Dimensions | ||
| LLHB2-FL-130W-CW: (A) 24" x (B) 19-5/8" x (C) 1-3/4" | ||
| Certifications |      |
|
Catalog
|
UPC |
Voltage |
System Wattage |
Efficacy |
Color
|
BUG Rating |
Lumens |
CRI |
Wattage Equivalent |
| *LLHB2-FL-130W-CW | 615624014458 | 120~277V | 130W | 142 lm/W | 5000K | B4-U0-G1 | 18500 | 80 | 400W MH |
Additional Information
| Installation Instruction | |
|---|---|
| IES Files | |
| All LED IES Files |
