Details
| Category | LED | |
| Page | H16 | |
| Description: | ||
| The LUHB3 is UFO shape LED High Bay with low-profile design, excellent cooling structure. It is ideal for commercial areas such as warehouse, station, supermarket, or exhibition hall. It provides multiple mounting constructions for various mounting request. This series has built-in safety cable for enhanced safety restraint. UL listed for wet locations. DLC premium listed. | ||
| Specifications: |  |
|
| Voltage: | 277~480V | |
| Power Factor: | > 0.9 | |
| Distribution Type: | TYPE VS Distribution | |
| Housing: | Die Cast Aluminum | |
| Finish: | UV Resistant Black Powder Coat Finish | |
| Lens Material: | High Light Transmittance Polycarbonate Lens | |
| Ambient Operating Temp: | -40°C / -40°F to 40°C / 104°F | |
| Mount: | 1/2“ heavy-duty Fixture Hook Included; Trunnion (Sold Separately) |
|
| UL listed for Wet Location | E335594 | |
| Life Hours: | 50,000 | |
| Warranty: | 5 Year Limited Warranty | |
| Beam Angle: | 90° | |
| 6KV Surge Protection | ||
| Dimmable to 10% | ||

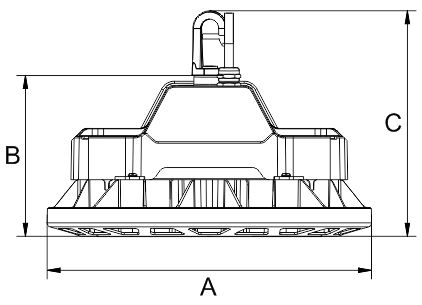

| Dimensions | ||
| LUHB3-100W / 150W-480V: (A) 12-3/8” x (B) 6-1/8” x (C) 8-5/8” | ||
| LUHB3-230W-480V: (A) 13-3/4” x (B) 6-5/8” x (C) 9-1/8” | ||
| Certifications |         |
|
Catalog
|
UPC |
Voltage |
System Wattage |
Efficacy |
Color
|
BUG Rating |
Lumens |
CRI |
Wattage Equivalent |
| LUHB3-100W-CW-480V | 615624014380 | 277~480V | 100W | 142 lm/W | 5000K | B4-U0-G1 | 13605 | 80+ | 400W MH |
| LUHB3-150W-CW-480V | 615624014397 | 277~480V | 150W | 137 lm/W | 5000K | B4-U0-G2 | 20658 | 80+ | 750W MH |
| LUHB3-230W-CW-480V | 615624014403 | 277~480V | 230W | 142 lm/W | 5000K | B5-U0-G2 | 31330 | 80+ | 1000W MH |
